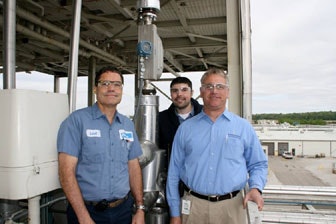

Figure 1. Larell Palmer, Erik Schroeppel and Joseph Almon (left to right) flank new two-wire meter.
Photo: Christopher Meyer, Rosemount.The separators also are very important to the overall process mass balance. Inefficient operation can lead to energy waste, output-product-purity problems and poor yield.
The solvent recovery process is continuous and runs year round. The flow rate into each column is roughly 300 liters/minute. This amounts to 125 million liters/year per column — which requires extracting around 6 million liters/year of solvent from each column. The uptime of each column was around 80% due to maintenance, upsets and planned downtime.
Inefficiencies or downtime in the solvent recovery columns can bring the primary production process to a stop after reserve capacity is depleted. Lost production costs could run in the hundreds of thousands of dollars. In addition, because the bottoms from each of the three columns goes to the site waste treatment plant, inaccuracies and column upsets result in lost efficiency at that plant.
Drivers for Change
Companies like Lilly now expect a lot more from process control and instrumentation than in the past. We continually are looking to minimize waste, maximize output and optimize efficiency throughout the plant. There's much more focus on the accuracy and reliability of measurements. With the solvent recovery columns we needed to upgrade the instruments to provide greater accuracy and reliability.
The existing differential pressure/orifice flow meters measuring feed, overhead and bottom flows of the separator columns were around 25 years old and had reached the end of their useful lives. In fact, we actually had stopped performing time-consuming maintenance on these devices. When first installed they had provided adequate flow measurements that even now would be good enough for inventory management. However, they no longer were giving the accuracy or reliability required for the recovery process.
As a result, much of the operation of the columns became manual. Columns were put in recycle mode due to more frequent process upsets. Lost uptime was estimated to cost an average of $3,000 per upset.
Once or twice a month the feed flow measurements were so poor that we experienced excursions outside of the control limits. These excursions could be very costly, requiring isolation of the waste streams and further testing/treatment as well as disruption of other plant processes. We estimated the cost to be as high as $50,000 per upset.
Even without these excursions, we knew the instruments were losing the plant money every day — because the lack of optimized control (as a result of the inaccurate flow measurements) was leading to inefficient energy use, lost solvent and additional waste-treatment costs.
A Cost-Effective Option
We initially considered magnetic flow meters, as they provide accurate measurement and long-term reliability at the right price. However, they require external power — and no power wiring ran to the separator columns. We estimated the cost to run power to the 50-ft. columns at about $4,000 per column. Coordinating the efforts of separate groups for electrical and instrumentation work also would affect project cost and schedule. With everything factored in, the total cost to run power was prohibitive.
Coriolis technology appealed to us. After all, Coriolis is the most accurate technique available for measuring process mass and volume flows. However, conventional Coriolis meters also require external power, but the introduction of Emerson's Micro Motion 2200 two-wire transmitter made our use of Coriolis meters possible.
We already had standardized on Micro Motion Coriolis flow meters wherever possible throughout Eli Lilly. Around 200 devices are installed at the Clinton plant, mostly working directly on the manufacturing process. We also have some meters reading natural gas flows into the plant. When the availability of the new two-wire device came to our attention, it was an easy choice for the recovery process.
In September 2009, the first Coriolis meter was installed on the feed line of Column 1 during a routine maintenance shutdown. The device was positioned in the "flag" orientation in a vertical section of pipe (see lead photo). Because Coriolis technology doesn't require a long straight pipe run before or after the device, it was very easy to fit without serious pipe-work reconfiguration. Installation was simple and incredibly smooth. It took just a few minutes to get the meter up and running; after a couple of calls to the control room to confirm it was performing correctly, we were done.
The installation cost totaled $3,258, which included electrical and piping contractors' charges. We incurred some additional costs for piping changes not essential for the new meter install — because we decided to put the meter at a height that would provide easy ergonomic access rather than 12 ft. in the air like the old meter.
Impressive Results
The Micro Motion two-wire Coriolis device ideally suits continuous process and mass balance applications. The new meter delivers ±0.2% liquid flow and ±0.002 g/cm3 liquid density accuracy. Once the device was in place, we immediately found that feed flow rates were about 100 liters/minute higher than expected. This was far more than we had anticipated and demonstrated the difficulties we had to overcome when controlling the process.
We also have seen a good improvement in the stability of the recovery process. While operators before often were "shooting in the dark" regarding feed flow rates, they now have a stable starting point from which to make process adjustments. As a result there've been no upsets caused by the feed.
Not needing to move the process into recycle mode also means we no longer waste energy by being in that mode.
In early September we replaced three of the remaining eight meters for feed, overhead and bottom flows on the three columns. We expect to swap out the rest by the end of September. The new devices will allow us to perform an accurate mass balance on the separator. The mass balance information will enable us to optimize the process, maximizing solvent recovery while minimizing energy costs. We hope to improve the efficiency of the process by at least 5% if not much more.
An additional bonus is that the Coriolis meters have no moving parts and require very little maintenance. We expect that over time this will create more savings and further improve the uptime and efficiency of the recovery process.
LARELL PALMER is a senior instrument engineer for Eli Lilly & Co., Clinton, Ind. ERIK SCHROEPPEL is a process engineer for Eli Lilly & Co. in Clinton. JOSEPH ALMON is a senior sales engineer for Micro Motion, Emerson Process Management, Indianapolis, Ind. E-mail them at [email protected], [email protected] and [email protected].
